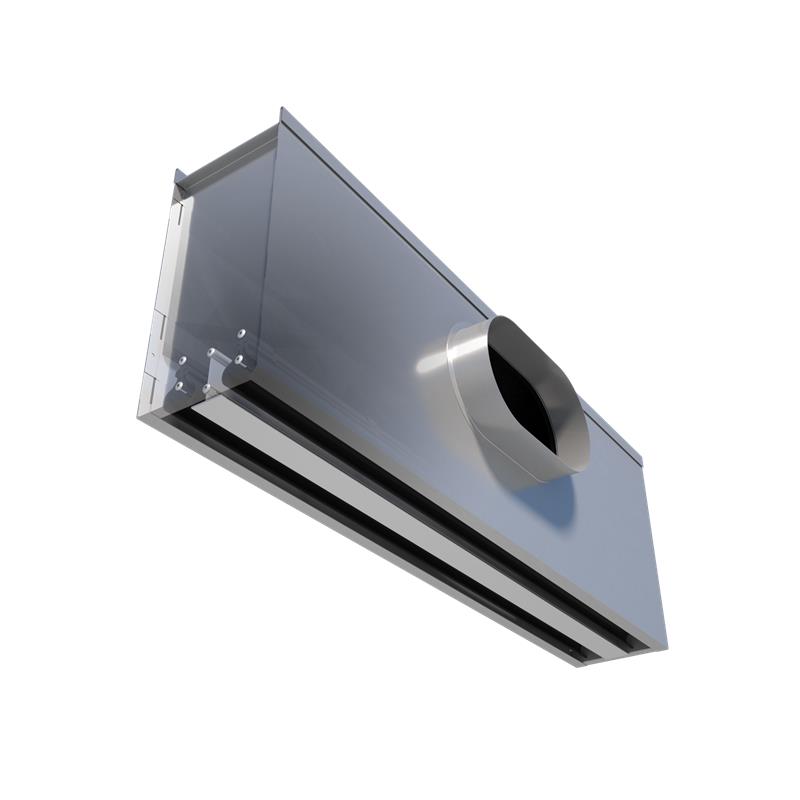

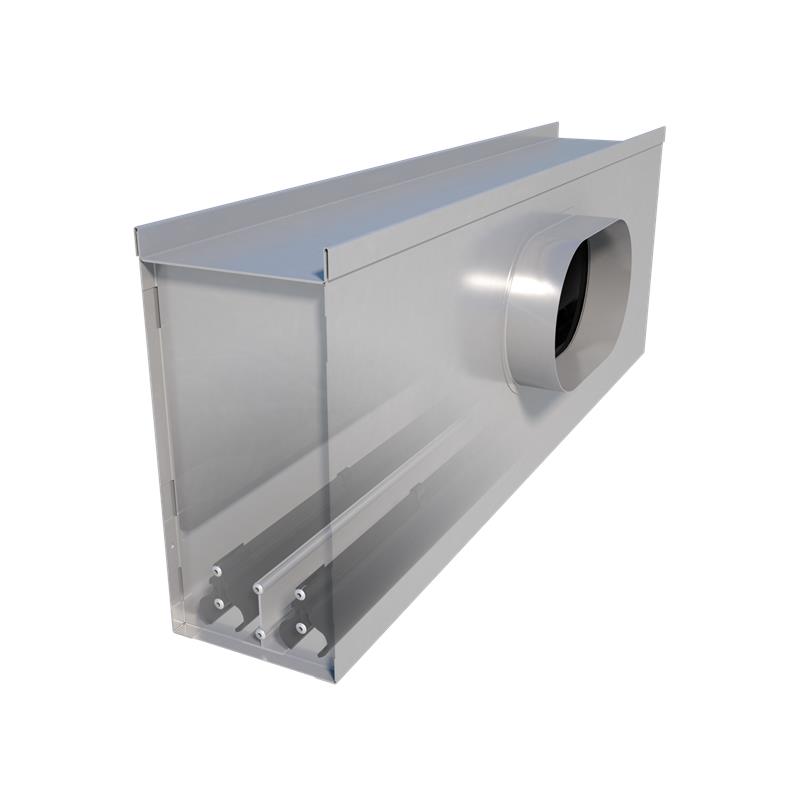

TBD3 - T-Bar Diffuser, Ice-Tong Pattern Controller
TBD3, TBD3-FROverview
T-bar diffusers consists of a coated steel casing with extruded aluminum center tee (minimum 2 slot) and pattern controllers. Air pattern controllers are available in multiple styles to provide various air patterns with a high induction ratio for a high degree of thermal comfort. Matching return diffusers are available to complement supply units and maintain the architectural appearance throughout the space.
Typical Applications
The TBD series of T-bar diffusers are designed for lay-in installation in standard ceiling grids, and are typically installed along the perimeter of commercial spaces. They provide various air patterns with a high induction ratio for a high degree of thermal comfort.
The ice-tong style adjustable pattern controllers provide a full 180° range of air pattern adjustment for both horizontal and vertical set points. When set for a horizontal air pattern, the aerodynamically curved pattern controllers produce a tight ceiling-hugging air pattern, even at low airflow rates.
Construction Options
- Slot Widths
- 1/2 in. (TBDx50)
- 3/4 in. (TBDx75)
- 1 in. (TBDx100)
- 1 1/2 in. (TBDx150)
- Pattern Controller Style
- Ice-tong
- Options
- Return diffuser (TBR/FR)
- Internal insulation (TBDI3)
- External insulation
- Fire rated construction (TBD3-FR)
- Factory installed outer T-bars
- Aluminum plaster frame

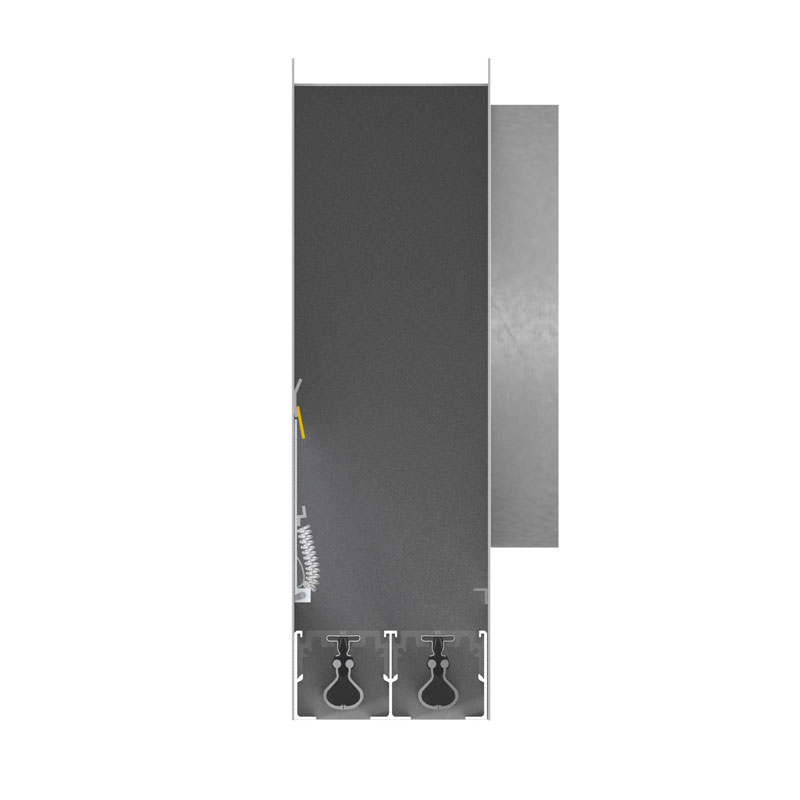

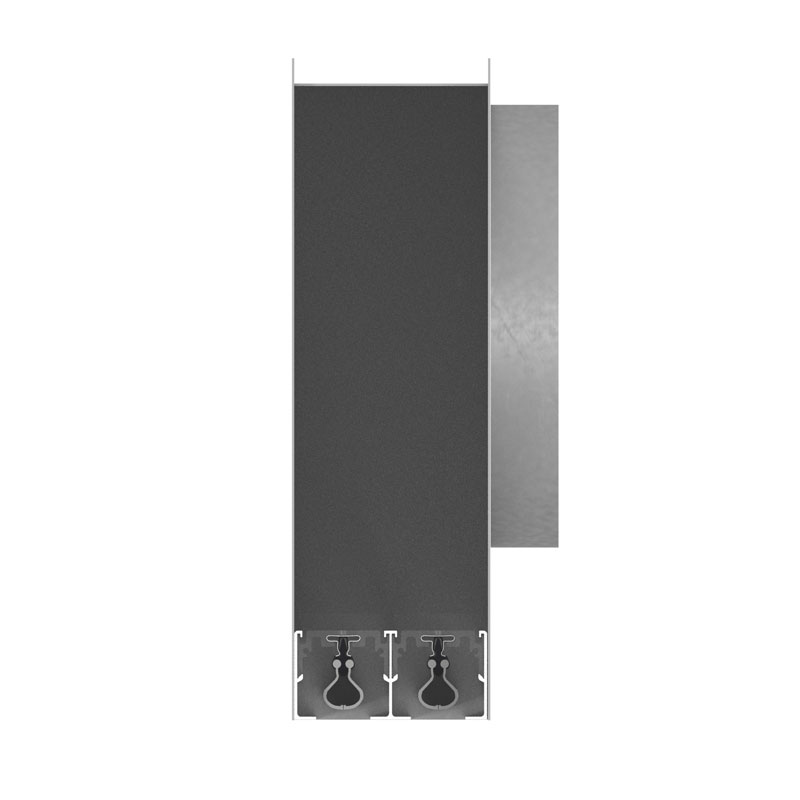

TBD3-FR cross section
