RCG - Reversible Core Grille
RCGOverview
The Reversible Core Grille (RCG) is an easily adjustable, all-aluminum sidewall supply grille, well suited to both heating and cooling applications. The removable core can be repositioned to provide four different vertical deflections including: 15° up, 15° down, 5° up, 5° down. Optional rear-mounted deflecting vanes control horizontal spread.
Construction Options
- Frame style
- Flat Surface Mount
- Curved Surface Mount
- Size
- Minimum: 6 in. x 4 in.
- Maximum (one piece): 72 in. x 36 in.
- Oversize construction available
- Options
- Steel or aluminum directional vanes
- Steel opposed blade damper (VCS3)
- Aluminum opposed blade damper (VCS3AL)

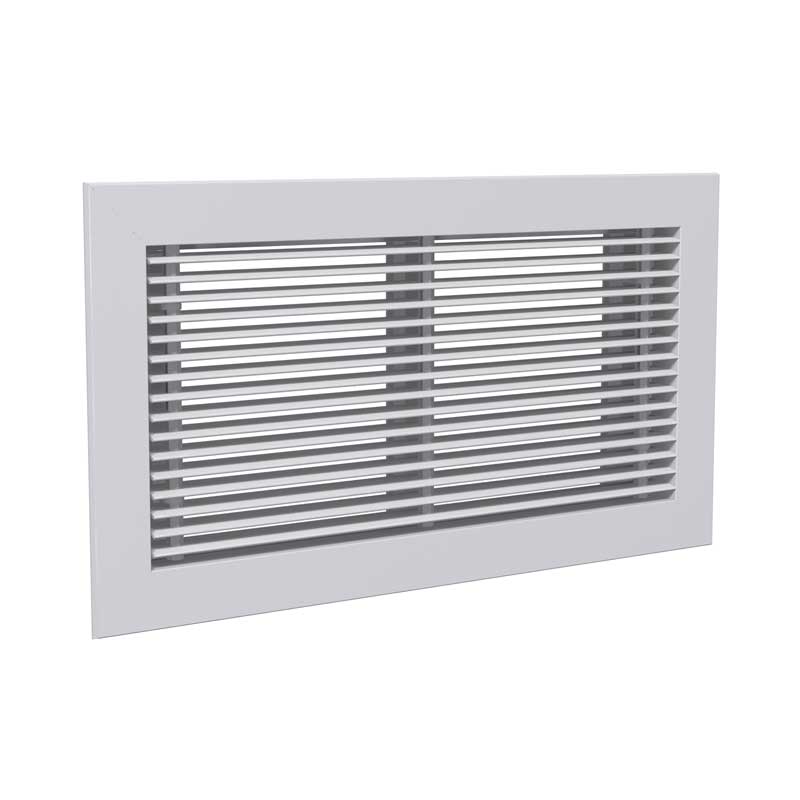

Reversible Core Grille

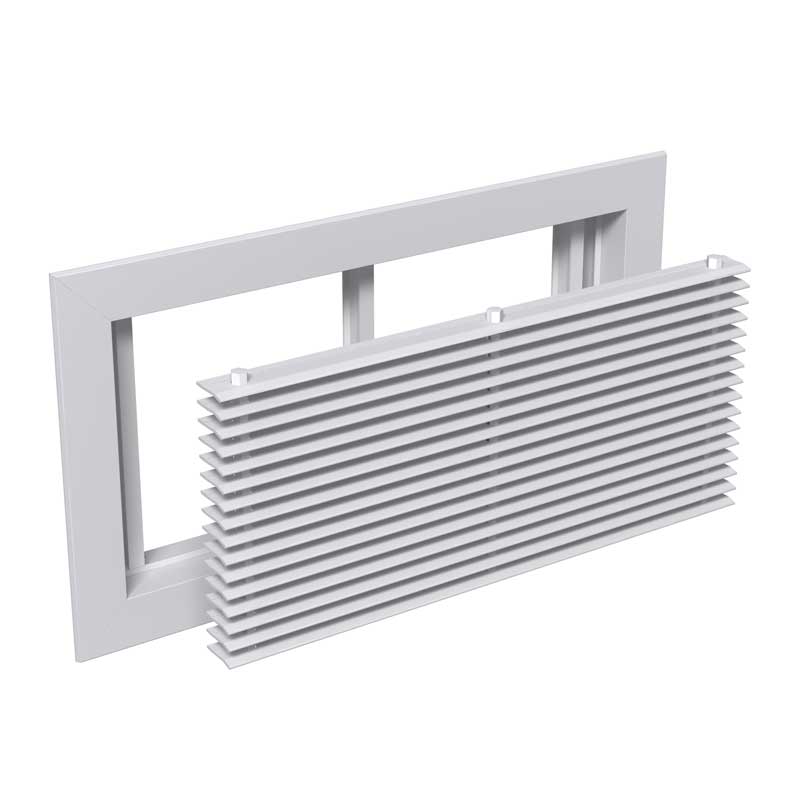

Reversible Core Grille 4

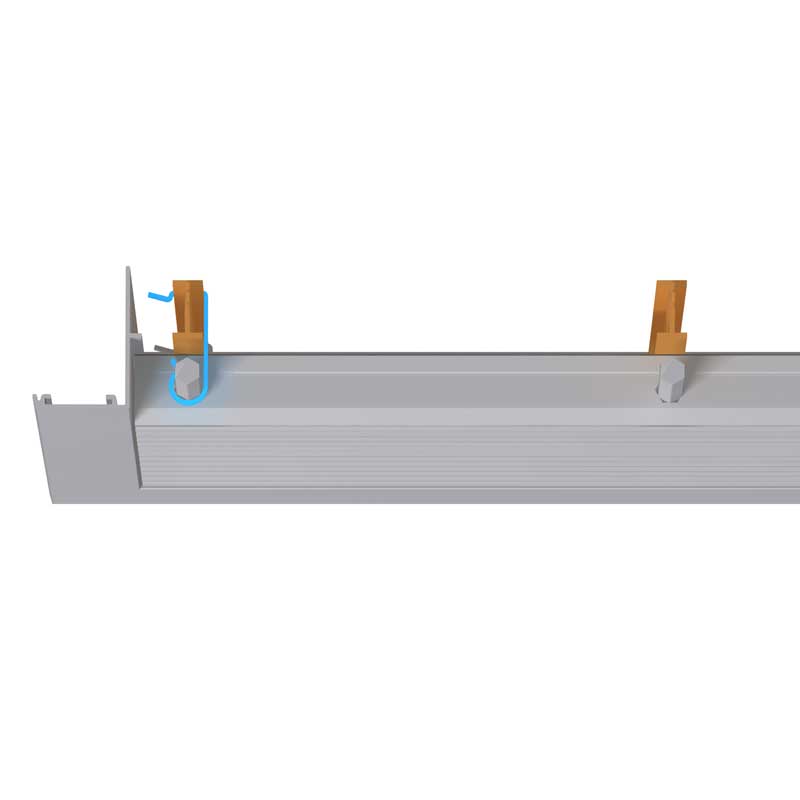

Reversible Core Grille 5
