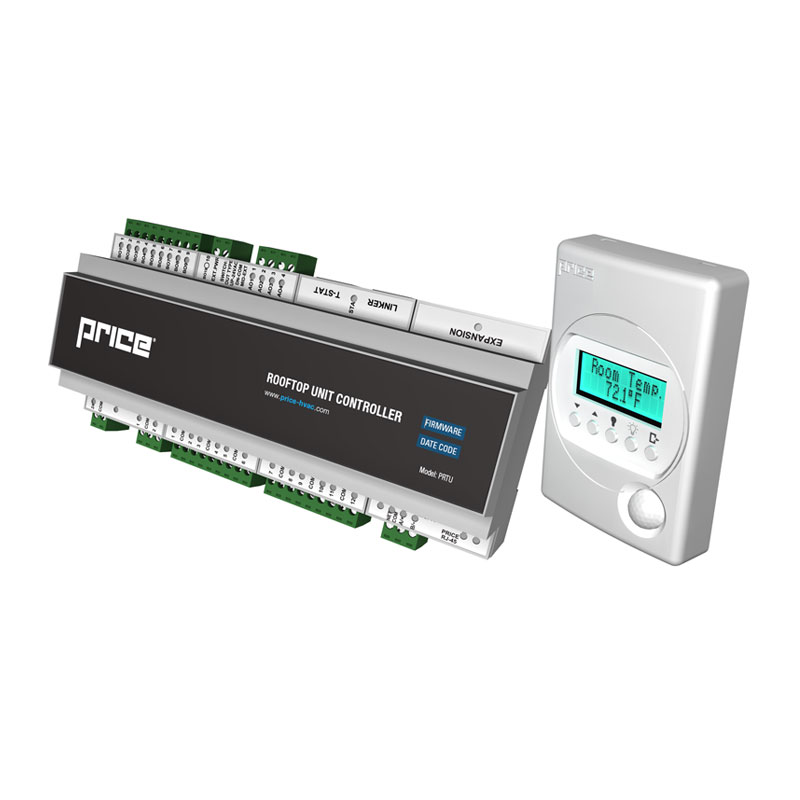

PRTU - Price Rooftop Unit Controller
PRTUOverview
Designed to operate with virtually any packaged Constant Volume or Variable Volume rooftop unit ranging from 2-30 tons, the PRTU is one of the most robust and easy-to-use controllers on the market. Ideal for the small to medium size building market with a footprint of 50,000 sq. ft. the PRTU rooftop controller acts as the main thermostat for the RTU and can be used when implementing a Price Zoning System solution.
Features
- Networked Voting Strategy Operation
- Designed to network with Price Controllers via BACnet communication
- Up to 30 Zones max
- Stand-Alone RTU Operation
- Inputs
- 2 x Binary (dry contact)
- 12 x Analog (Thermistor & Voltage type)
- Outputs
- 10 x Binary (24vac)
- 4 x Analog (0-10vdc)
- Discharge and Return Air Temperature monitoring
- Built-in Motion Sensor & Weekly Schedule for Occupied/Unoccupied scheduling
- Night Setback Operation
- BACnet MS/TP communication protocol

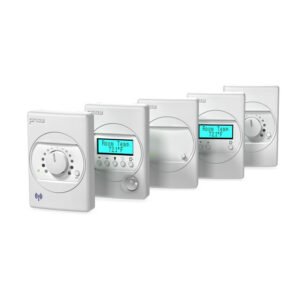

- System Controller Interface Thermostat c/w 35 ft. plug & play CAT5e plenum rated cable
- Setup Wizard Configuration for quick onsite setup
