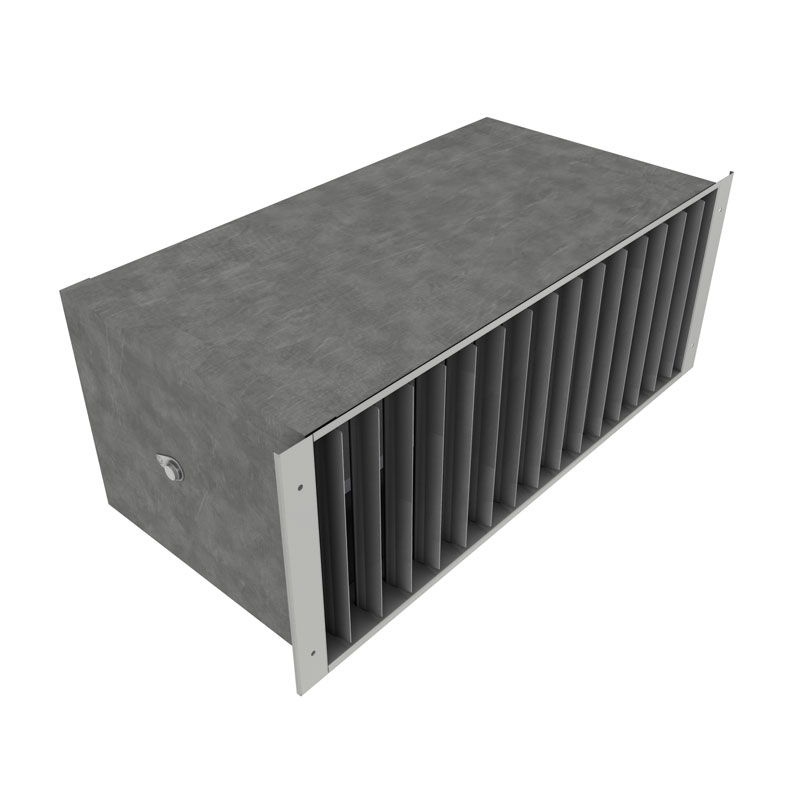

DGD - Underfloor Deflection Grille with Damper
DGDOverview
The Price DGD underfloor deflection grille with damper serves as a supply diffuser for underfloor air channels while providing modulation capabilities. The DGD will evenly disperse air from high velocity ductwork into the underfloor plenum, ensuring an even pressure and temperature distribution. Directional vanes and a patented blade indexing device lock each blade into position to prevent unwanted changes in blade deflection.
Features
- Robust coated steel frame provides added strength to grille assembly
- Low profile frame on top and bottom allow for maximization of duct opening size
- Damper integrated into grille for simple one-piece installation
Construction
- Streamlined 1¼” (32) blades positioned on 1½” (38) centers. Maximum blade length is 18″ (458).
- Individually adjustable blades that lock into position at 0, 15, 30 and 45° deflection in both directions.
- Blade indexing device is stainless steel; other hardware is mill or coated steel.
Finish
- White Powder Coat – B12
- Black Powder Coat – B17
- Mill Finish – Mill
For optional and special finishes, see color matrix.

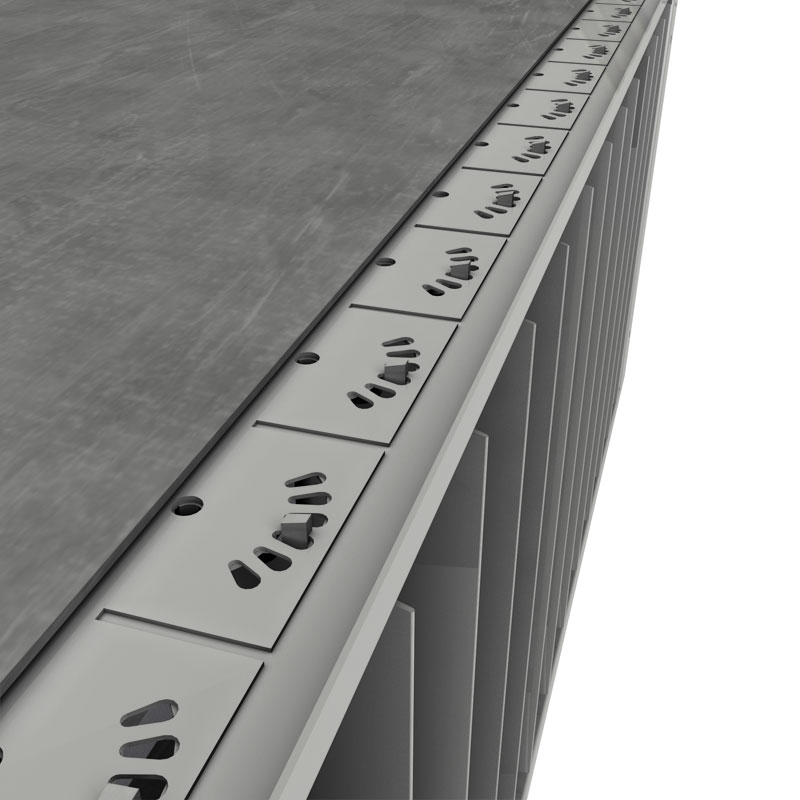

Underfloor Deflection Grille with Damper Top

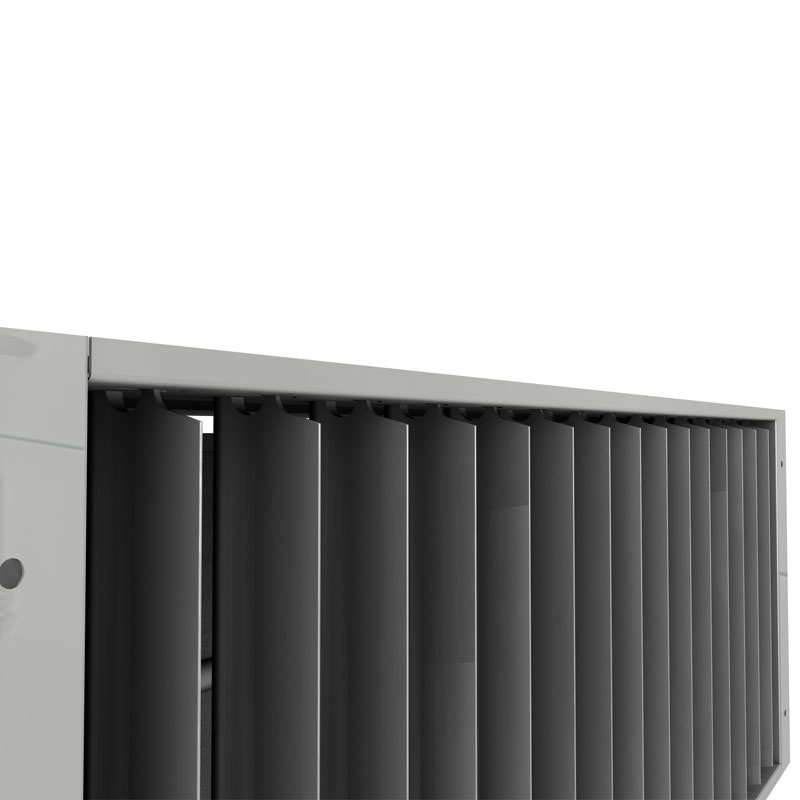

Individually Adjustable Blades

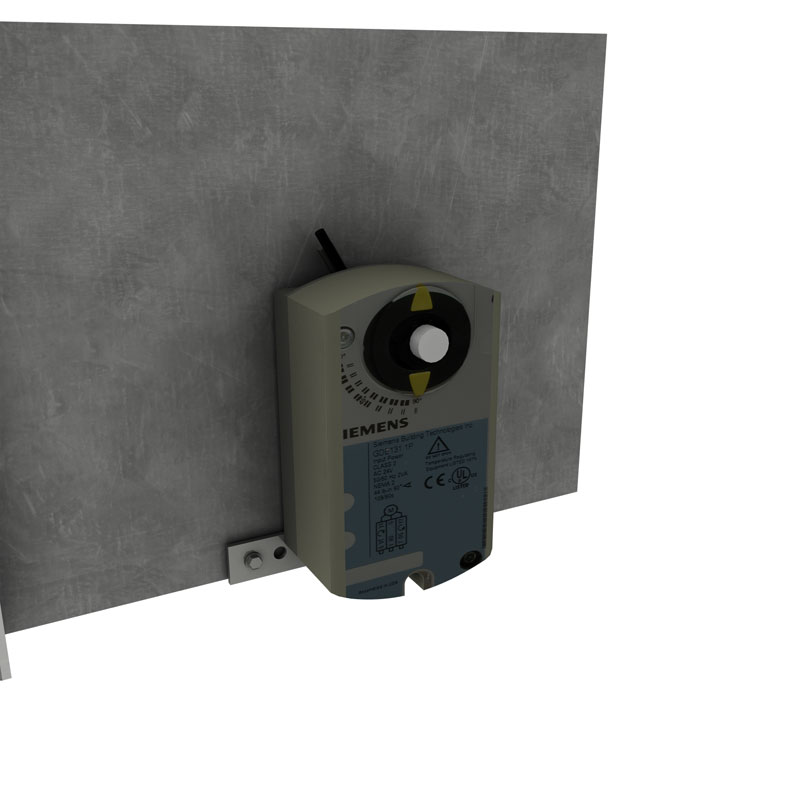

Damper Motor

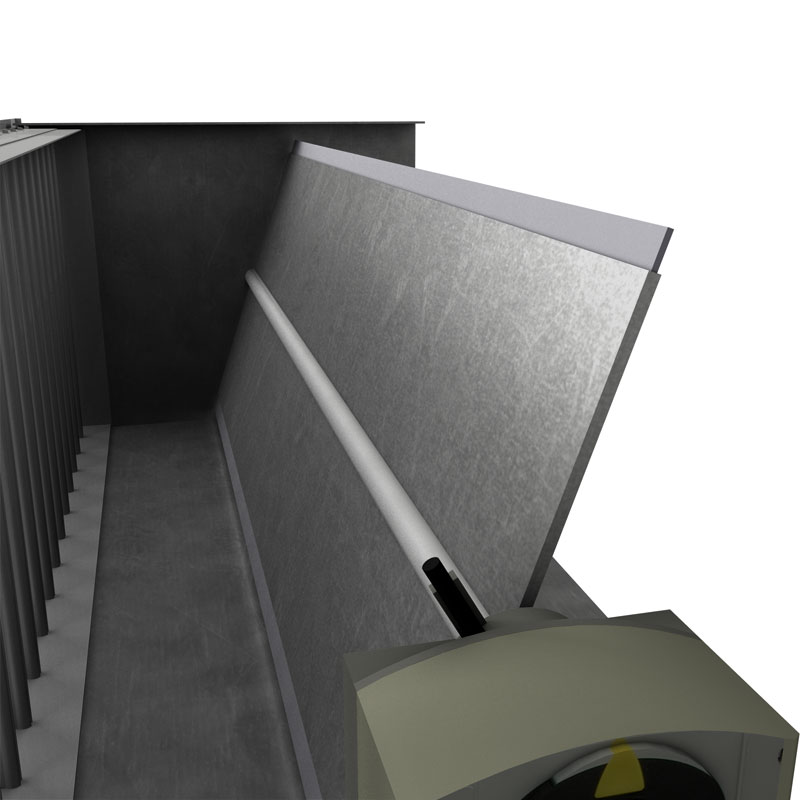

Damper Blade
Streamlined Blades
