AMDC - Louvered Face Diffuser with HEPA Filter
AMDCOverview
The all-aluminum AMDC provides a high volume of filtered airflow with a very high induction rate and horizontal air pattern. The high induction rate works to dilute contaminated room air by quickly mixing room and supply air. The horizontal air pattern helps to direct contaminated air toward low-level exhaust grilles where it is removed
from the space.
Filters
Available filter efficiencies:
HE          95% at 0.3 μm
HEPA     99.99% at 0.3 μm
ULPA     99.999% at 0.12 μm
Typical Applications
AMDC louvered face diffusers with replaceable HEPA filters are an effective air distribution solution in today’s modern cleanrooms. They are designed to provide large volumes of filtered air in a 4-way horizontal air pattern.
Construction Options
- Options
- Room Side Adjustable Inlet Damper
- Static Pressure Port
- Exterior Insulation
- Aerosol Test System
- LED Filter Status Indicator

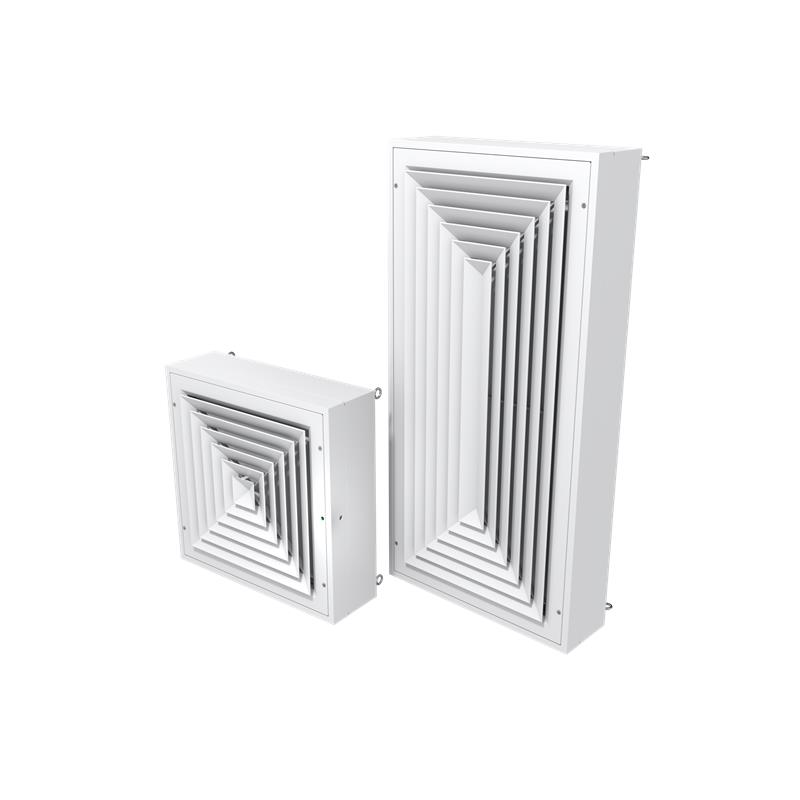

Louvered Face Diffuser with HEPA Filter (AMDC)

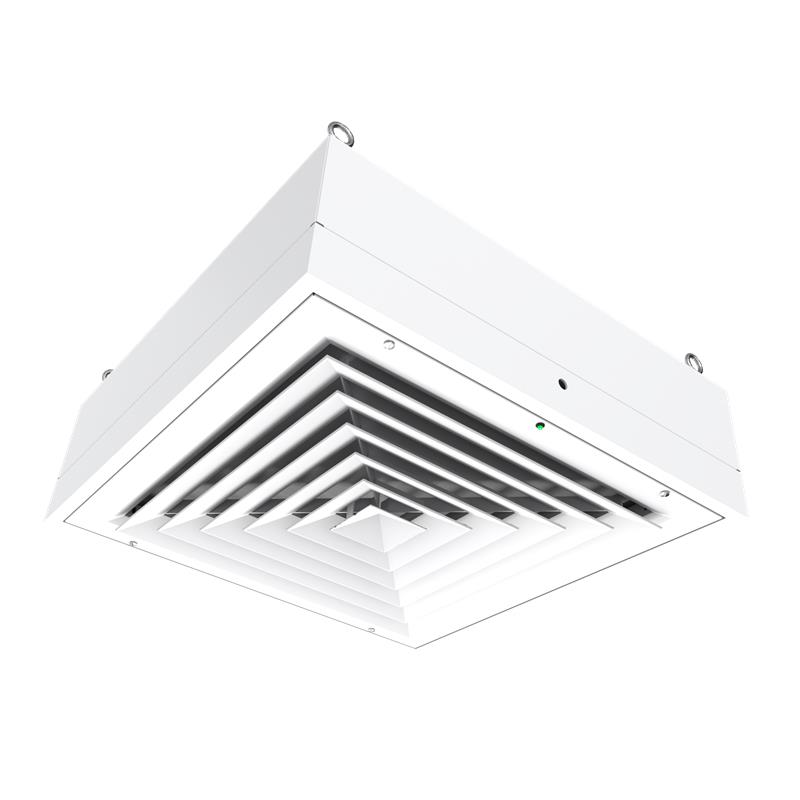

Louvered Face Diffuser With Hepa Filter 3
