ACBC - Active Chilled Beam Cabinet
ACBCOverview
The Floor Mounted Price Active Beam, ACBC, is an exposed perimeter unit suitable for office spaces, schools, hotels, lobbies, or any application where occupant comfort demands are high. The upper portion of the ACBC induces room air to pass through a heat exchanger and mix with the primary air. The mixed air is then discharged evenly from the lower portion of the ACBC across a louvered or perforated face at a low velocity.
Features
- Multiple coil configuration options
- Heavy gauge casing
- Quiet operation
- Integrate with accessories such as bookshelves, duct covers, and filler panels
Features
- Multiple coil configuration options
- Heavy gauge casing
- Quiet operation
- Integrate with accessories such as bookshelves, duct covers, and filler panels
Casing Construction
- Steel plenum
- Louvered or perforated face
- White powder coat finish
Water Coil Construction
- Aluminum fins
- Manufacturer pressure tested to 450 psi [3.1 MPa]
- Vent and drain
Water Connection Type
- Standard Connection Options:
- 1/2″ [13mm] SWT
- 1/2″ [13mm] NPT (female)
- Other connection types available

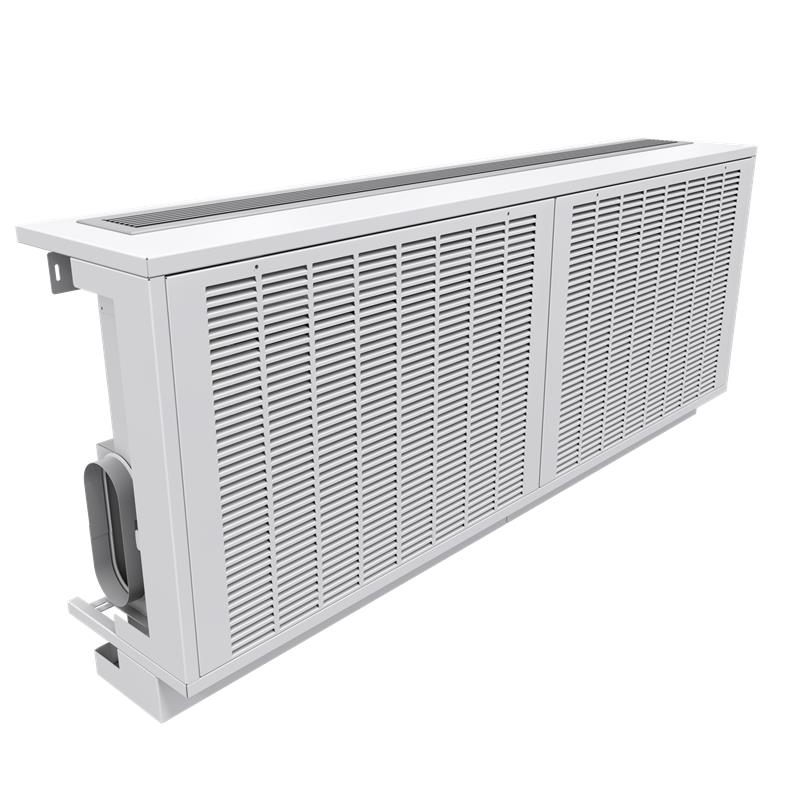

ACBC wall mounted unit
ACBC 2-way airflow

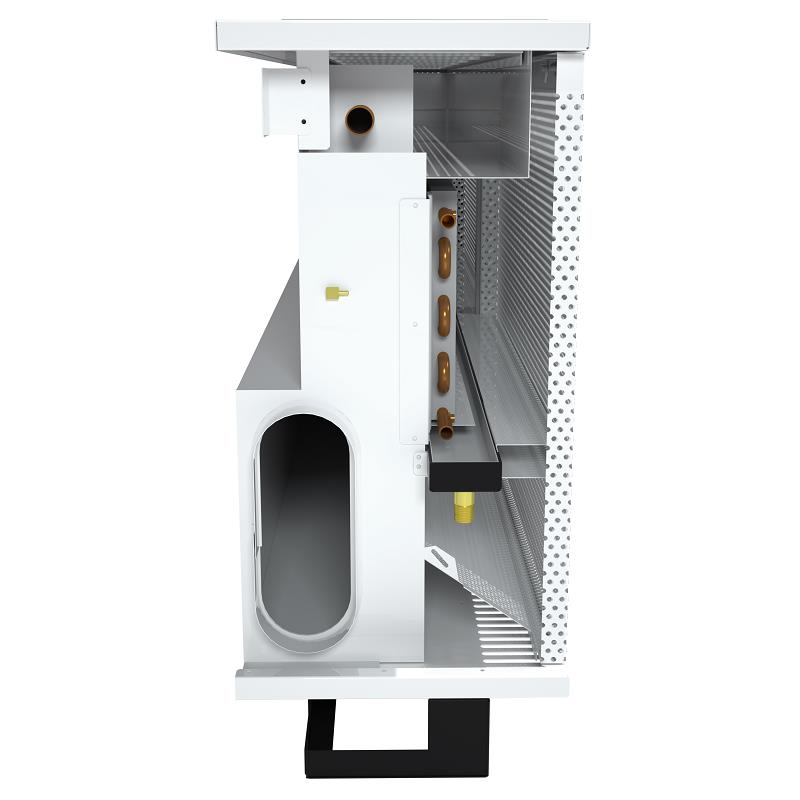

ACBC 1-way airflow with fin tube heater
