SCD - Square Cone Diffuser
SCD, ASCD, SCDA, ASCDA, SCD-FR, SCDA-FROverview

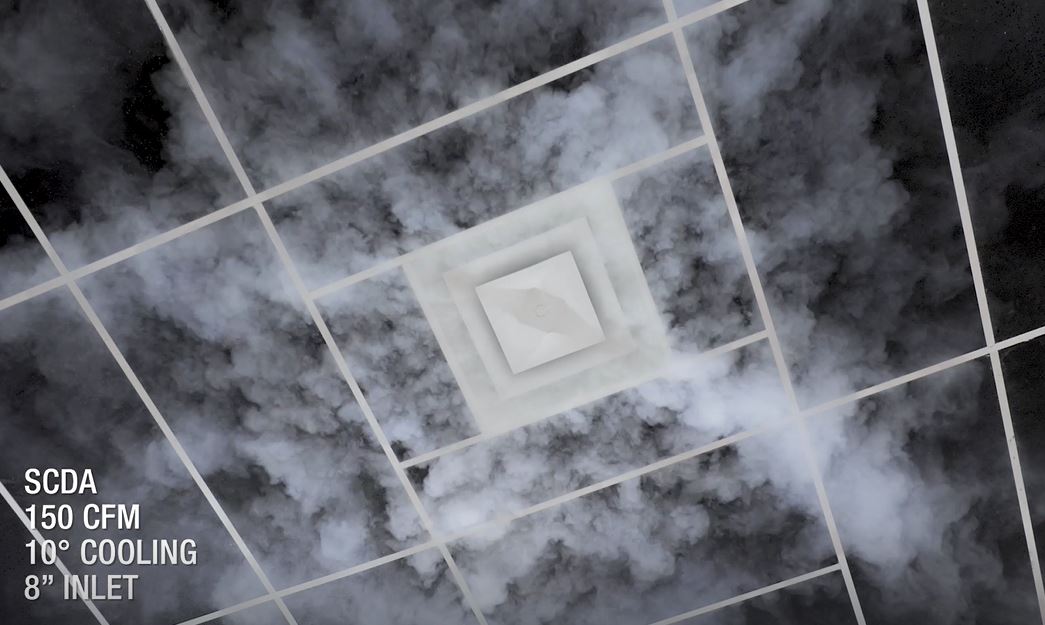

The Square Cone Diffuser (SCD) features a highly engineered, aerodynamic backpan and cone assembly that creates a horizontal 360° radial air pattern. The SCD promotes rapid mixing, temperature equalization, and velocity reduction with industry-leading low pressure drop and sound generation. Ideal for VAV applications with high turndown rates, the SCD maintains a consistent, stable air pattern even as air volume is reduced, minimizing dumping and drafts.
Construction Options
- Material
- Steel (SCD)
- Aluminum (ASCD)
- Core
- 3 cone
- 4 cone (24 in. x 24 in. face size only)
- Options
- Fire rated construction (SCD-FR /SCDA-FR)
- Adjustable pattern deflectors (SCDA/ASCDA/SCDA-FR)
Typical Applications
The Square Cone Diffuser, or SCD, is ideal for use in ceiling applications and is compatible with most standard ceiling styles.
