DFE - Exposed Displacement Diffuser
DFE (1-WAY) , DFE (3-WAY)Overview
Exposed Displacement Diffusers (DFE) supply low-velocity discharge air in a 1-way or 3-way pattern, directly into the occupied zone. DFE diffusers are designed to be installed along a sidewall, against a pillar or integrated into features such as bookcases or shelves. The superior air quality and low noise levels realized with these units make them suitable for schools, office spaces, restaurants, theaters, hotels, and convention centers.
- Optional inlet locations: bottom, top, rear, or from either side.
- Field-cut inlet option.
- Ships with protective film on face and inlet.
Construction/Finish
- Material
-  Frame and equalization baffle – Aluminum
- Plenum and perforated discharge panel – Steel
- Options
- 1-way discharge
- 3-way discharge
- Inlet locations: top and rear
- Protective film for face and inlet
- Base and duct covers
- Standard finishes: Pure white (B11), White (B12), Aluminum (B15), Black (B17)
- Custom color to match
For optional and special finishes see color matrix.

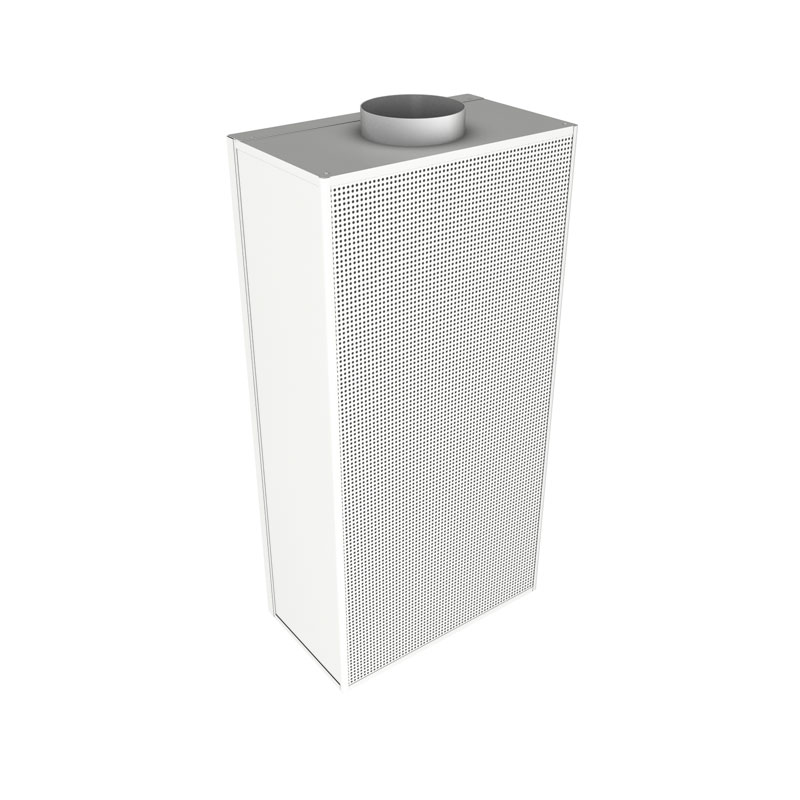

Exposed displacement diffuser

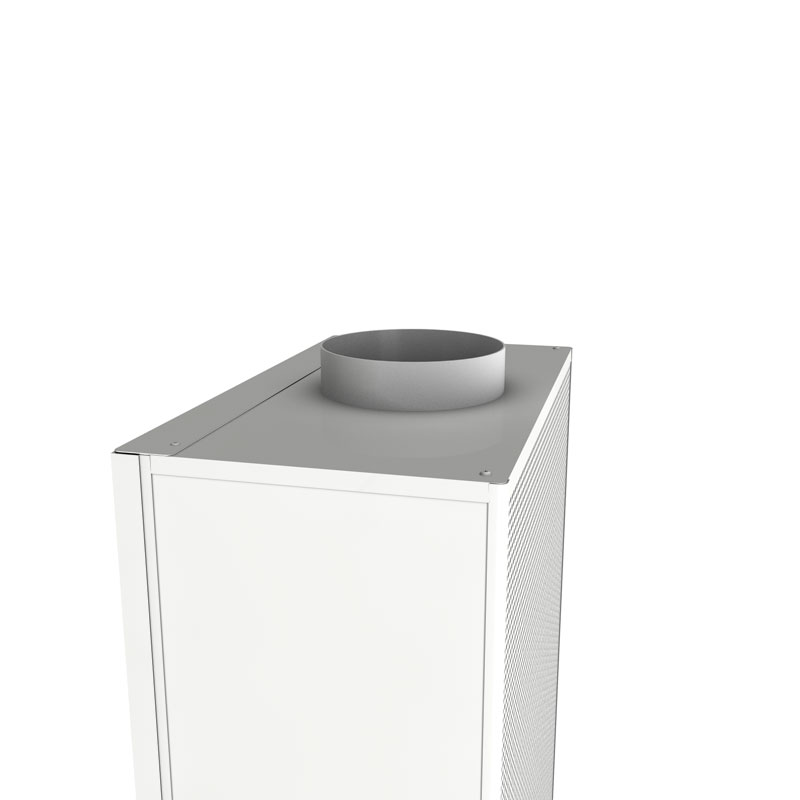

Top inlet
