FDCLP2-DOAS - Low Profile, Series Flow Fan Powered Terminal Unit with DOAS
FDCLP2-DOASOverview
The Price FDCLP2-DOAS, low profile fan powered constant volume terminal unit with sensible cooling coil option is designed to be used as part of a Dedicated Outdoor Air System (DOAS) wherein a DOAS air handler is used to dehumidify and condition the outdoor air as well as handle the space latent load. By managing the space sensible load with the sensible cooling coil, the DOAS air handler can be sized to deliver only the airflow required for ventilation and latent loads, resulting in:
- A smaller HVAC system, resulting in fan energy savings.
- Proper humidity control at each zone.
- Eliminating over-ventilation.
DOAS offers energy saving benefits which complement the design goals of Green/LEED buildings. Benefits include energy efficient hydronic cooling combined with reduced air volumes and air handler size. The FDCLP2 with sensible cooling coil option comes with a standard ECM motor which provides significant energy savings compared to PSC motors.
Features
- Unit height as low as 8 5/8 in.
- High efficiency ECM motor
- 20 gauge casing for added durability
- Reinforced casing for reduced sound levels
Typical Applications
The FDCLP2-DOAS includes a sensible cooling coil that is to be used with the FDCLP2 as part of a dedicated outdoor air system (DOAS). With optimized coil circuitry and 2 through 8-row coil configurations, the FDCLP2 with sensible cooling coil can be selected to reduce primary air supply to minimum ventilation requirements while ensuring ASHRAE 62.1 compliance.
Construction Options
- Hot water or electric reheat
- Fiber free and foil faced liners

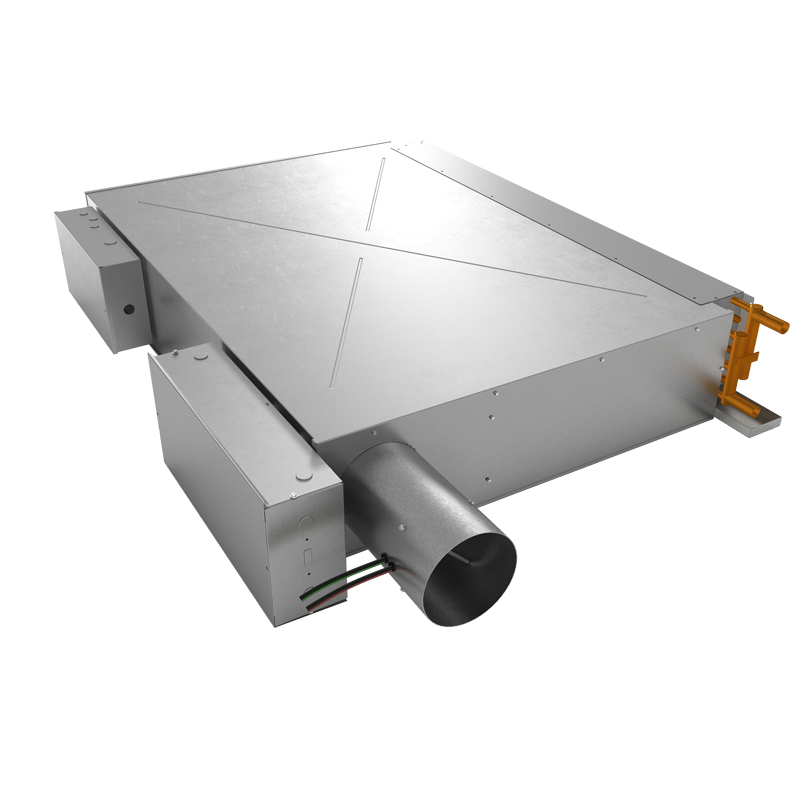

FDCLP2-DOAS Constant Volume Series Flow Low Profile with DOAS
